Bobcat (mini)

Bobcat (mini)

Uses +

Excavating, levelling, moving material, loading bins. Narrow access applications and small sites.

Specifications +

Operating Load (SAE)	320kg
Ground Clearance (Centre)	180mm
Machine Weight (with fuel & std bucket)	1160kg
Overall Length (with bucket)	2395mm
Overall Width (without bucket)	890mm
Dump Height (38°)	1835mm
Reach Fully Raised (38°)	430mm
Dump Angle (Max)	1420mm
Raising Time (Full Load)	3.8 sec
Lowering Time (No Load)	3.5 sec
Dump Time	2.3 sec
Travel Speed	Forward: 9.0km/h; Reverse: 9.0km/h
Clearance Circle (with bucket)	2.3m
Gradeability	Forward: 31%; Reverse: 58%

Features +

Transport +

Options +

Safety Information +

hi-vis vest

steel cap boots

safety gloves

safety glasses

ear protection

hard hat

dust mask

Addtitional Information +

Hazard assessment sheet - Bobcat mini Operating procedure - Skid steer loader (bobcat) Specifications sheet - Bobcat mini 1.1ton

Add to Enquiry

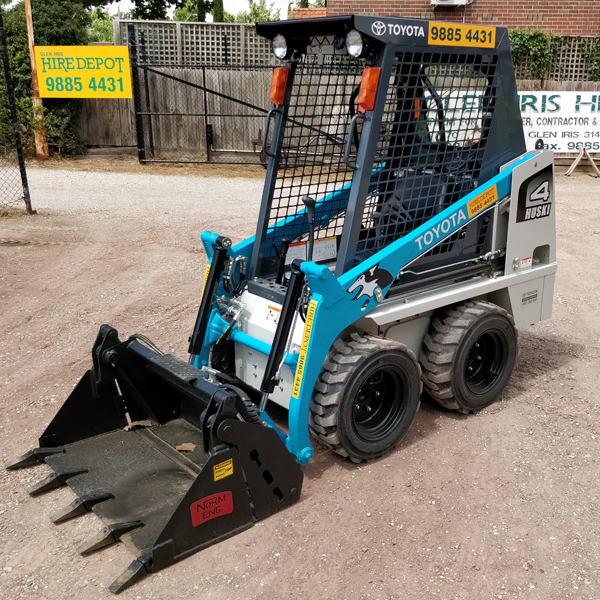

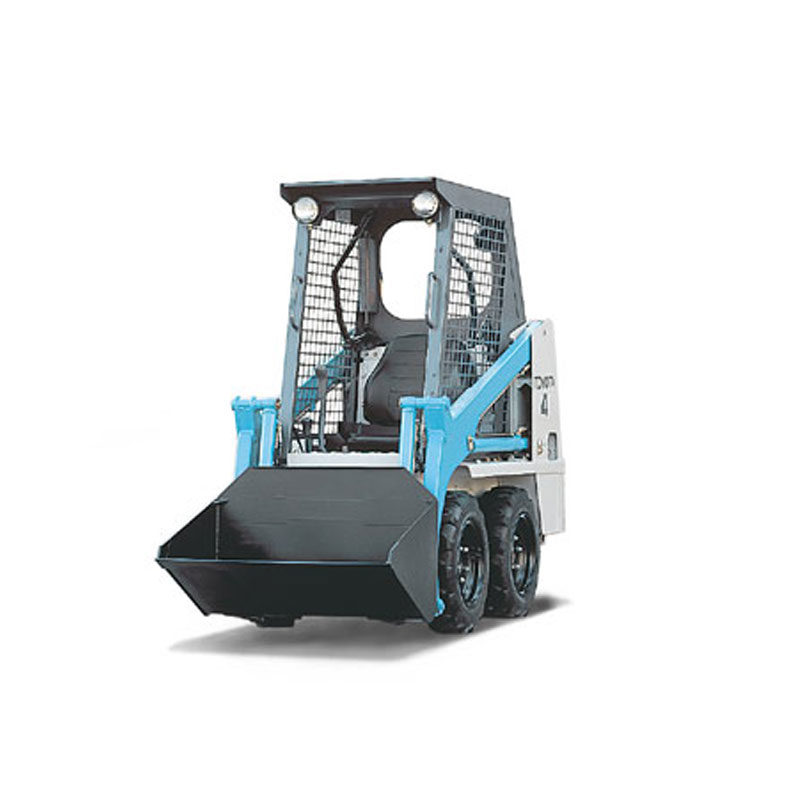

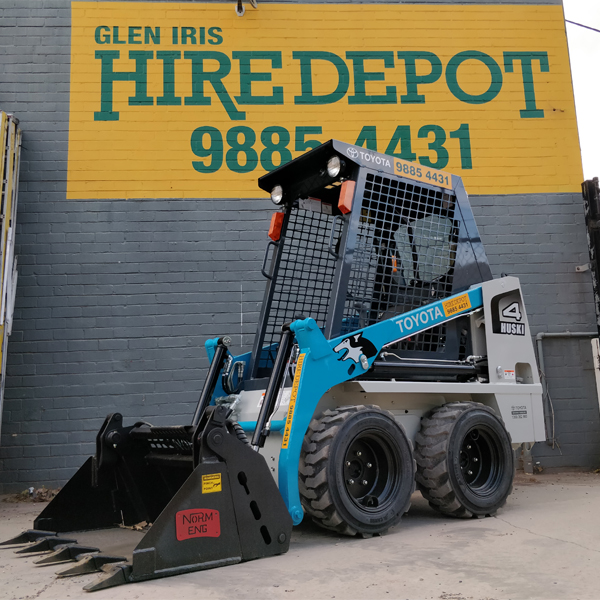

Heavy duty four-wheel drive mini loader for hire in Melbourne, ideal for moving and levelling soil, mulch, sand and loading trucks, trailers and bins. Including 4- in- 1 bucket attachment for blade, levelling and bucket work.

USES:
Excavating, levelling, moving material, loading bins. Narrow access applications and small sites.
